PRODUCTS

BASALT STONE

Our crashed basalt stone in 20 mm up to 40 mm Aggregation sizes can transmute to super thin basalt fibers. This subject is confirmed by high level Ukrainian laboratories.

We know our basalt stone has very advataged physical parameters that Distinguish product fibers from others.

We can prepare and dilivery in all transportation modes and all quantities.

Please call our company for more details.

1.  Basalt yarn.

2.  Basalt Filament Roving.

3.  Basalt chopped strands

4.  Basalt geo-grid

5.  Unidirectional fabric

6.  Basalt fabrics

7.  Basalt bulked yarn

8.  Basalt composite bar

9.  Basalt multiaxial fabrics



1.       Basalt yarn



Description: made from continuous twisted and combined basalt filaments.

Application fields: for weaving various threads and fabrics.







2.    Basalt Filament Roving

Description: The bundled basalt yarns without twisting;

Application fields:

l  Winding for tanks, pipes, and gas cylinder;

l  Weaving fabrics;

l  Preparing and fixing construction sections;

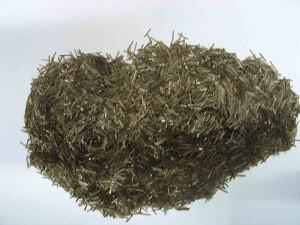

3.    Basalt chopped strands



Description: A special length filaments chopped from basalt continued fiber.

Application fields:

l  For reinforcing plastics fields;

l  For cements, asphaltic concrete, constructions, etc;

l  For SMC, BMC;

l  For reinforcing shells of cars, trains, ships, etc;

l  For producing fire-resistant products;

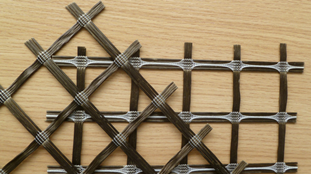

 4. Basalt geo-grid



Description: made from basalt roving and its surface are coated with Acrylic acid.

Application fields: mainly used for reinforcing asphalt pavement.





5. Unidirectional fabric



Description: made from basalt roving;

Application fields:

l  For reinforcing, repairing to buildings, bridges, etc;

l  For reinforcing body of vehicles, wind motor blades;

l  For reinforcing sports goods, such as skis, hydro-ski, etc.







Common specifications



items	Weight g/m2	Filament diameter μm	MPa	GPa	Stretch %	thickness mm
200	200	7	2100	91	2.6	0.111
300	300	7	2100	91	2.6	0.170
280	280	13	1700	84	2.6	0.111
380	380	13	1700	84	2.6	0.170

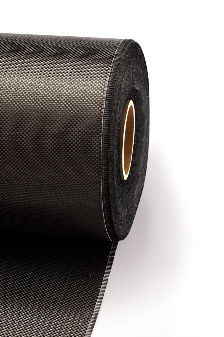

6. Basalt fabrics



Description: made from basalt twist yarn.

Characteristics:  weaved by basalt yarn, whose filament diameter is 5.5μm - 13μm and among them there are plain cloths, twills and satin weave cloths, etc., its coat after-treatment makes it has high-temperature resistant up to 980 ℃, block-fire, no smoke, high insulations and strength etc.

Application fields:

l  For electric insulation;

l  For chemical industry;

l  For ship building, aviation and aerospace fields;







Common specifications



Items	Filament diameter μ m	mass g/ m2	weave	width mm	Melting point ℃	thick mm	Size  type	temperature ℃
7 -120	7	120	Plain/ twill	1000	1250	0.18	textile	500- 980
9 - 230	9	230	twill	1700	1250	0.18	textile	500 - 980
13- 750	13	750	twill	1700	1250	0.80	textile	500 - 980









7. Basalt bulked yarn

Description: the basalt fibers are bulked by bulking machine.

Application fields:

l  on fire protection field;

l  on insulation fields;

l  on construction material fields;

l  on vehicle and transport fields;











Common specification



Items	Filament diameter μ m	Yarn Tex (％)	Water content (％)	Temperature ℃
260	9	260	≤ 1.0	500
400	9	400	≤ 1.0	500
800	13	800	≤ 1.0	500
1200	13	1200	≤ 1.0	500

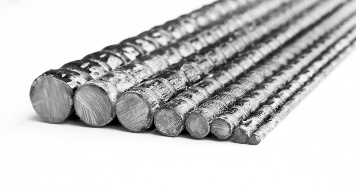

8. Basalt composite bar

Description: A new kind composite bar, whose basalt fiber is used as reinforcing material and combined with sizes as matrix, manufactured by extrusion moldings process.

Characteristics: Its weight is only 1/4 to that of steel but its tensile strength is doubled than that of the steel. Nonconductive to electricity and heat, elasticity modulus stable, nonmagnetic, it has high acid proof and alkali resistant, can be formed in various forms. Using it can prolong the life of buildings.

Application fields:

l  Building constructions;

l  The constructions and fixing of highways and bridges;

l  The constructions and fixing of cannels, mines;





Common specifications

Items	Diameter (mm)	Tensile strength (MPa)	elasticity modulus (GPa)	Stretch (％)	Mass (g/m3)	Magnetic Susceptibility (CGSM)
1	3	900	55	2.6	1.9 – 2.1	< 5×10-7
2	6	830	55	2.6	1.9 – 2.1
3	10	800	55	2.6	1.9 – 2.1
4	25	800	55	2.6	1.9 – 2.1





9. Basalt multiaxial fabrics



Description: weaved by multiaxial machine and sewed.

Application fields:

l  Blades of wind motors and propeller;

l  Various vehicles and sports goods;

l  Aviation, aerospace and protecting fields;
